034 Motorsport - Catch Can Kit - VW MK7 & 7.5 Golf R - 034-101-1008.
034Motorsport's engineers invested significant effort developing and testing to create the most comprehensive and effective catch can kit on the market for the 2.0T EA888 Gen 3 motor.
The 034Motorsport Billet Aluminum Catch Can Kit for 8V Audi S3 and MkVII Volkswagen Golf R features a completely revised high-capacity design to provide optimal crankcase ventilation while keeping oil and water vapor out of the intake tract. Furthermore, this catch can prevents oil ingestion during hard driving and heavy cornering loads seen on track. This kit is designed to prevent oil from depositing in the intake manifold and intake valves, resulting in drastically reduced carbon buildup and extended life from the motor.
These are one of the best products on the market.
Features:
- Prevents Crankcase Oil Deposits in Intake Manifold and on Intake Valves
- Reduces Carbon Buildup
- Ensures Proper Crankcase Ventilation
- Eliminates Potential Boost Leak at PCV Assembly
- Integrated Dipstick for Easy Level Checks
- Retains Factory Engine Cover
- Simple Bolt-In Installation

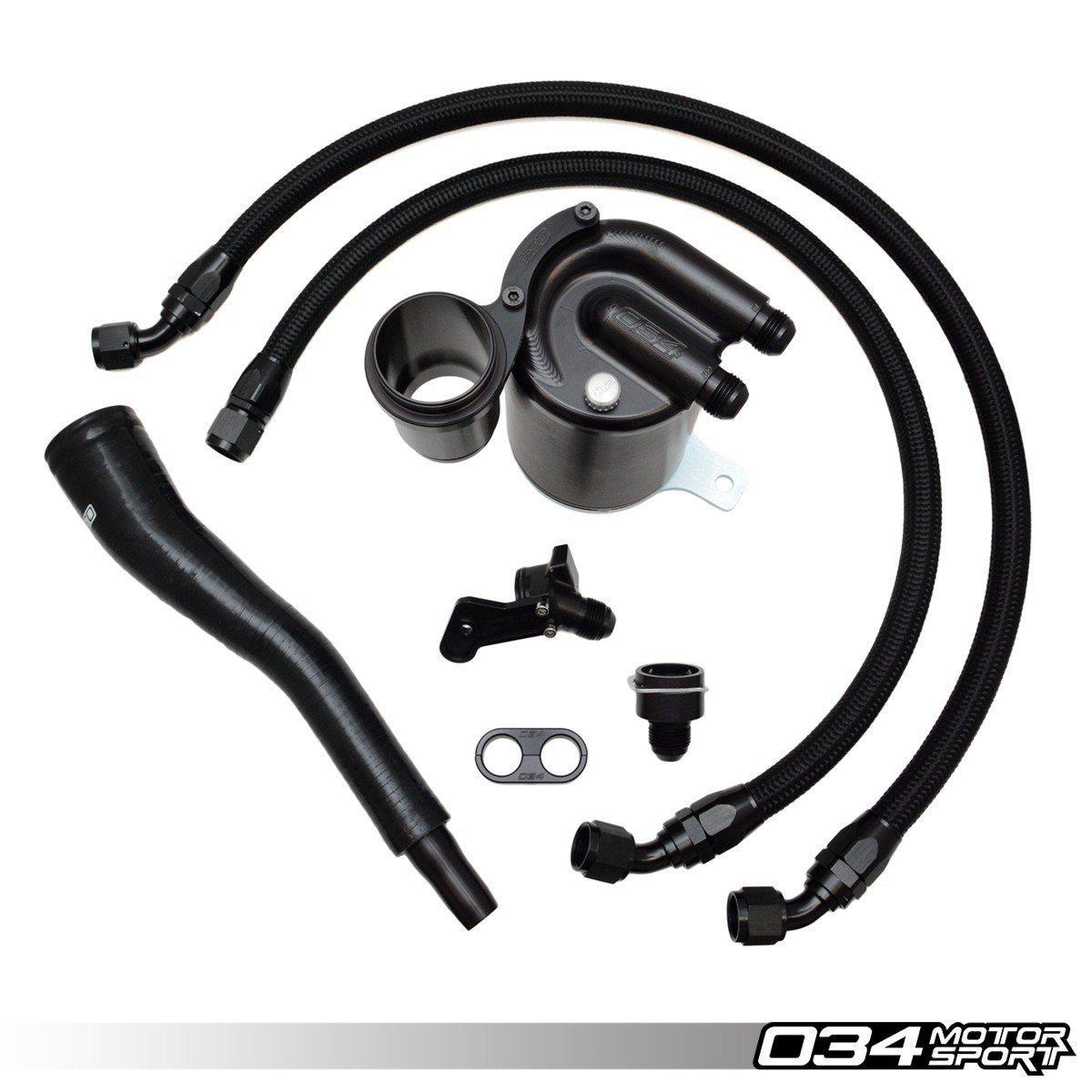

What's Included:
- CNC-Machined Billet Aluminum 034Motorsport Valve Cover Breather Fittings (Black Anodized)

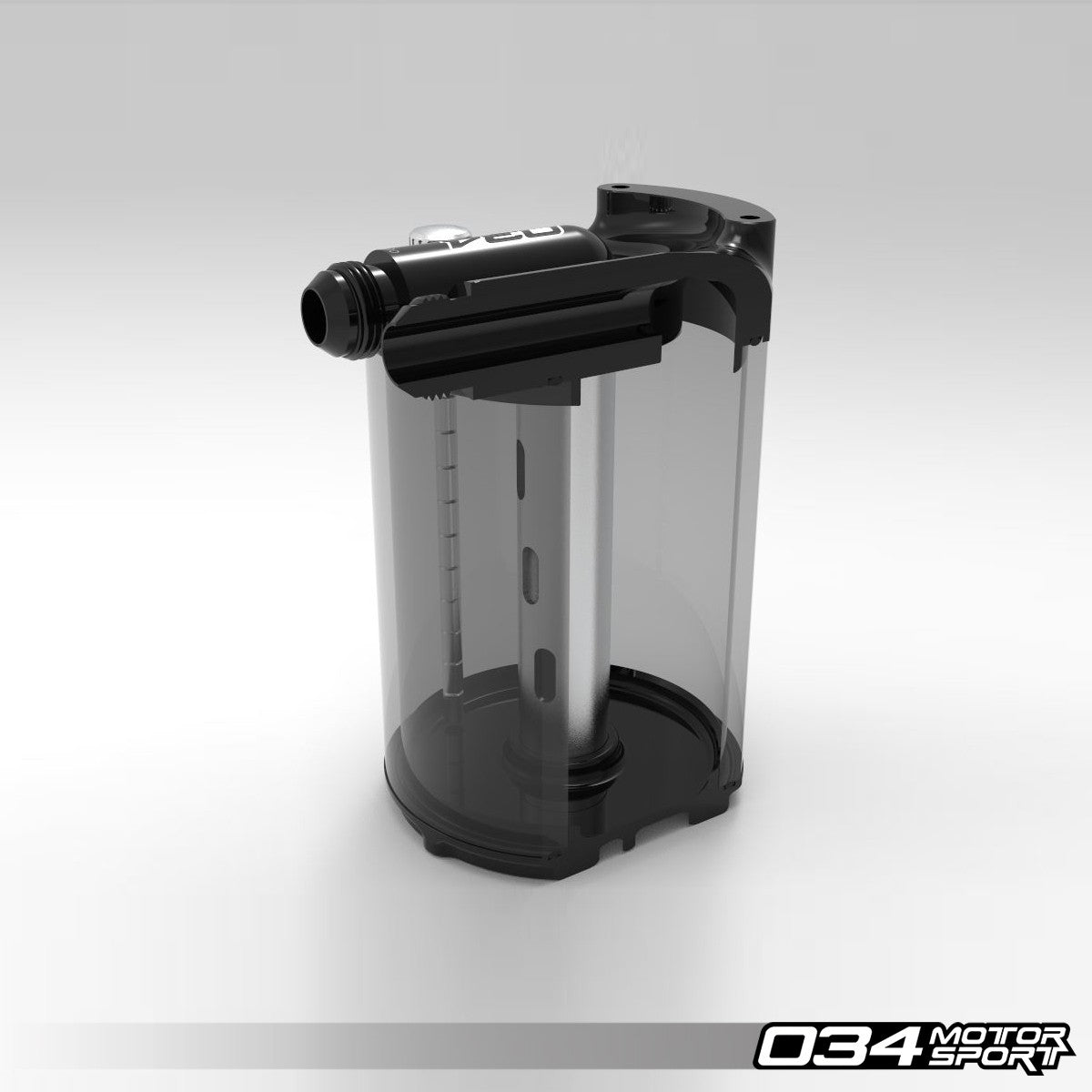

- 034Motorsport Modular Catch Can Assembly (Black Anodized)
- -10 AN Catch Can Inlet/Outlet Hoses
- Windshield Washer Filler Relocation
- No-Drill Mounting Bracket
- Installation Hardware
Optional Billet Valve Cover Breather (PCV) - 034-101-5017

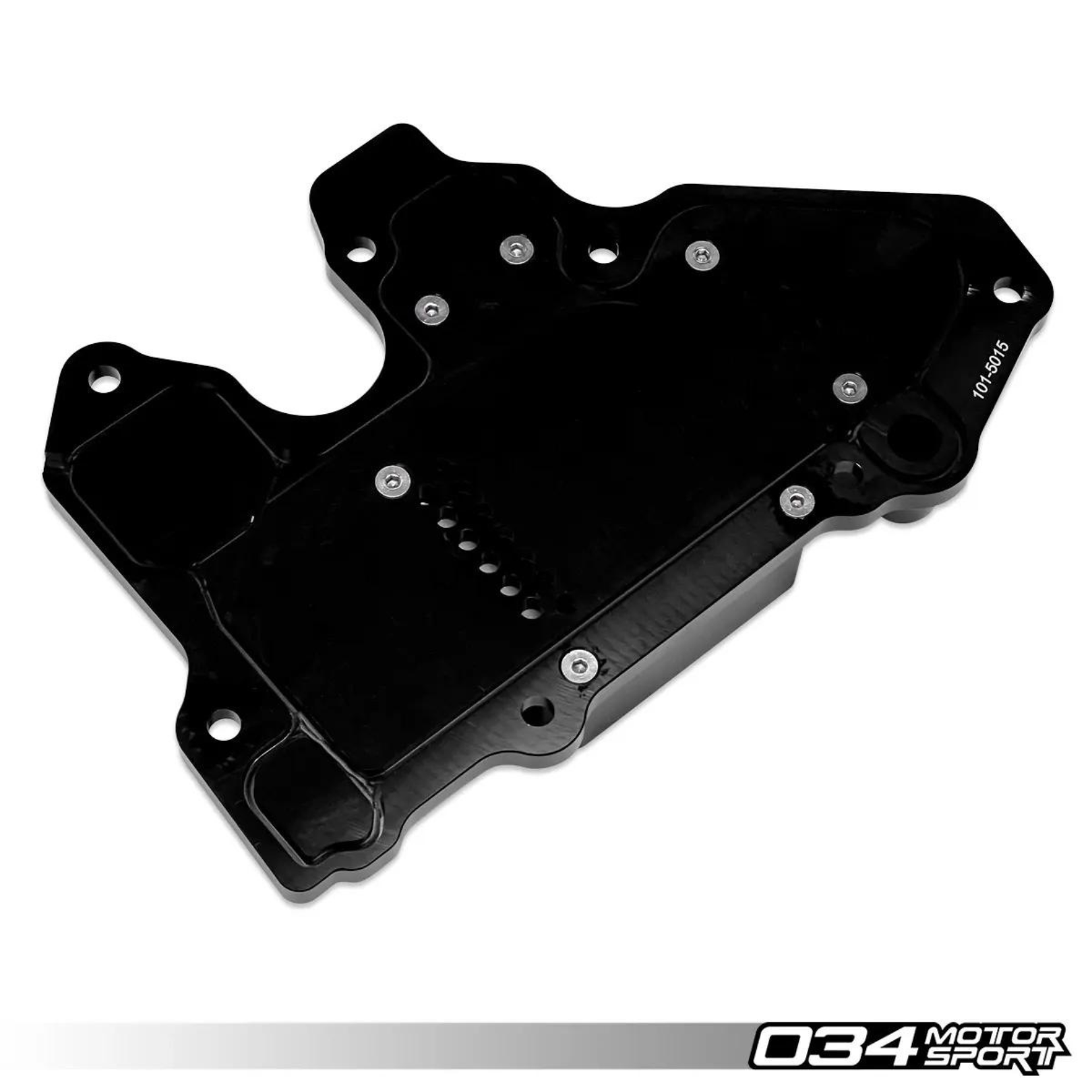

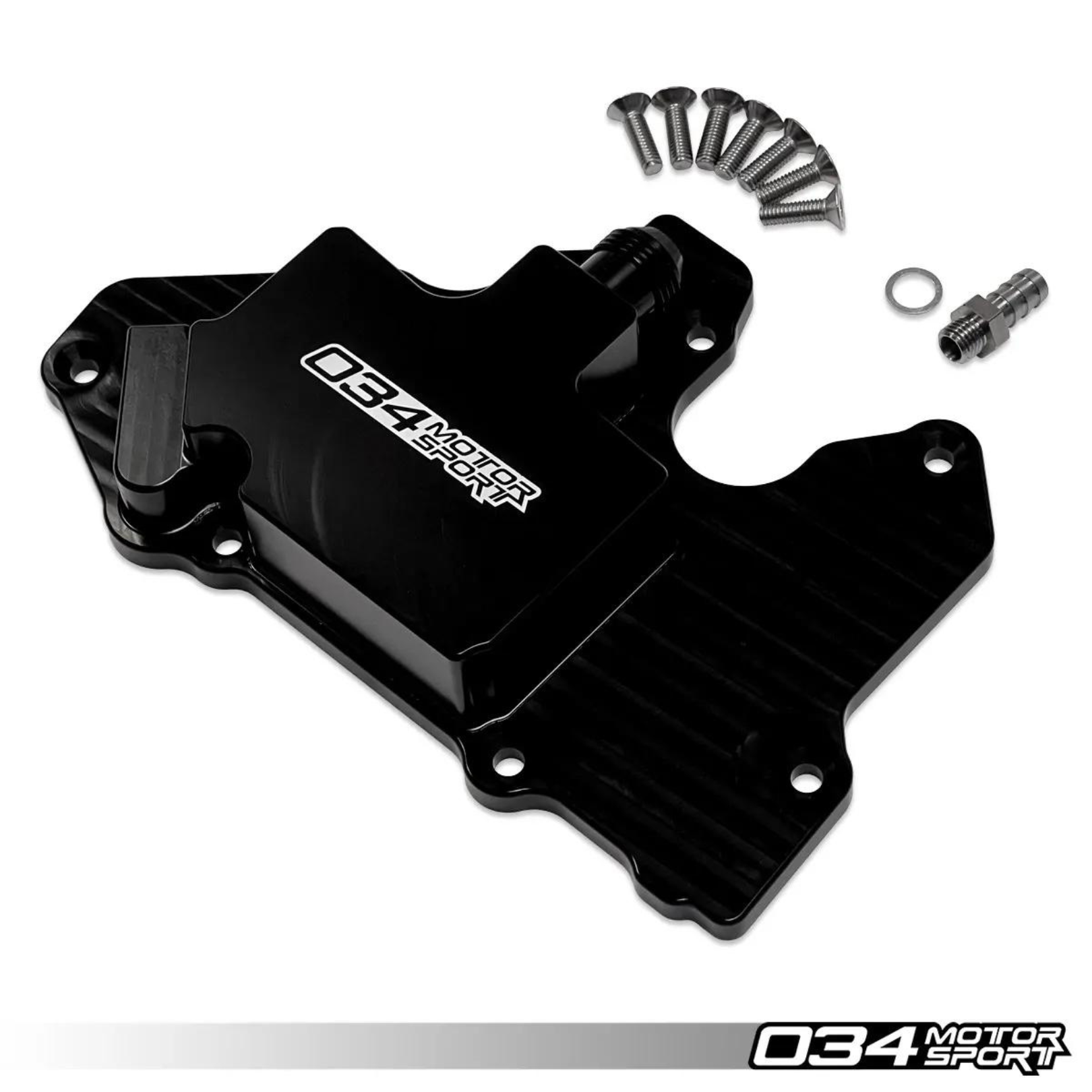

The Stage 2 Billet Valve Cover Breather Assembly for the Volkswagen Mk7/MK7.5 Golf GTI/R and 8V/8V.5 Audi A3/S3 is designed to completely eliminate the failure-prone factory oil separator and PCV assembly and offers a -10 AN connection to any catch can of your choice. This can be paired with the 034Motorport MQB Catch Can Kit for Stage 2 Catch Can setup.
The Stage 2 Billet Valve Cover Breather Assembly utilizes a built-in baffle plate which prevents oil from surging to the cylinder head and making its way into the intake, or worse, starving the engine. This Valve Cover Breather Adapter allows the engine to catch unwanted oil and water vapors, keeping the intercooler, charge pipes, and turbo inlet free from oil residue.
The Stage 2 Billet Valve Cover Breather Assembly is machined from 6061-T6 billet aluminum and anodized black for protection and long-lasting good looks.
Features:
- Machined from 6061-T6 Billet Aluminum
- Anodized Black for Protection and Long-Lasting Good Looks
- Built-in Baffle Plate Prevents Oil Surging to Cylinder Head
- Eliminates the “Giant Puff of Smoke” that Occurs on Track With the Stock PCV
- Takes the 034Motorsport MQB Catch Can to Stage 2
- Catches Unwanted Oil and Water Vapor
- Keeps the Intercooler and Inlet Tracts Clear of Oil Build-Up and Provides Clean Airflow Through the Inlet Manifold
